Joint Estimation of System Inertia and Load Relief
J. SUSANTO, A. FEREIDOUNI and D. SHARAFI
System Management, Australian Energy Market Operator, Perth, WA 6000, Australia
Summary
Modern power systems with high share of renewable generation are at the risk of rapid changes in frequency resulting from contingencies. The importance of an accurate assessment of system inertia and load relief, as well as frequency changes in the critical timescales is more pronounced in these power systems. This knowledge serves as an insight which will guide the solutions required for enhanced security and resilience. A novel procedure for simultaneously assessing system inertia and load relief using a system frequency response (SFR) model to fit measured disturbance data is presented. Results of applying the proposed approach on generator contingencies in the South West Interconnected System (SWIS) in Western Australia demonstrate the validity of the method and indicate that it can overcome some of the limitations observed in conventional inertia estimation methods based on the linearised swing equation, such as the sliding window and polynomial fit methods.
Keywords
System inertia estimation  load relief  load damping1. Introduction
Many power systems across the world are experiencing a gradual decline in synchronous inertia levels as synchronous generators are increasingly being displaced by generation interfaced to the grid via powerelectronic converters [1]. As inertia levels decrease, the average frequency in the power system is subject to more severe and rapid fluctuations in response to active power disturbances, e.g. from generation or load contingencies. It is therefore becoming more crucial that estimates of system inertia are reliable and accurate.
Most system inertia estimation techniques, whether offline estimates such as [2][5] or online estimates such as [6][8], rely on a linearised representation of the swing equation evaluated at the onset of a disturbance (t=0):
(1)
where is the system inertia estimate (MW.s), f_{n} is the nominal frequency (e.g. 50 Hz), P_{cont }is the disturbance size (MW) and is an estimate of the rate of change of frequency (RoCoF) evaluated at the onset of the disturbance (Hz/s).
For this linearised representation to be valid, it is assumed that i) there are no frequency deviations at the onset of the disturbance, i.e. , ii) primary frequency response has yet to begin acting, and ii) load relief is negligible in the early stages after a disturbance. To satisfy these assumptions, inertia estimates of the form described in (1) are often performed using historical generator contingency events, filtered to only select for single instantaneous disturbances (e.g. protection trip) as opposed to ramp downs (e.g. due to a generating unit boiler malfunction / failure) or contingencies involving multiple generating units. With such sudden single unit trips, the contingency size P_{cont} can normally be estimated quite accurately [5]. Alternatively, known active power perturbations by normal operational events such as the reversal of power in an HVDC interconnector [9] or an intentionally injected signal [10] can also be used.
However, the RoCoF is arguably the most sensitive parameter in (1). Ideally, the RoCoF would be calculated based on the samplebysample time derivative of a highresolution frequency trace at the onset of the disturbance. However, highresolution frequency measurements from Phasor Measurement Units (PMUs) or fault recorders contain white noise introduced by transducer, quantisation and signal processing errors [11]. Moreover, as depicted in Figure 1, the frequency trace can contain transient [5] and/or oscillatory components [2]. Therefore, calculating the time derivative using consecutive frequency samples would likely lead to significant errors [3].
To mitigate these issues, moving average windows or lowpass smoothing filters have been proposed in the literature, as well as in practical applications. For example, a sliding window has been adopted as a standard in Europe (e.g. [3] and [5]), where the RoCoF estimate is calculated by applying a 500ms sliding window over the frequency trace and then finding the maximum value of the samplebysample time derivative (since the maximum RoCoF theoretically occurs at the onset of the contingency). Alternative techniques include fitting a polynomial function to the raw frequency measurements [2] or simply applying a 0.5 Hz lowpass filter to the frequency trace [4]. The use of the centre of inertia frequency can also help in mitigating the impact of transient and/or oscillatory components [27]. The common thread is that the raw frequency measurements are smoothed out in some way to prevent spurious RoCoF measurements.
It was observed in [12] that system inertia estimates based on this approach are only accurate for events with relatively high RoCoFs, in which the assumption that the initial frequency decline is retarded by system inertia alone remains valid. For smaller disturbances or high inertia conditions where the RoCoF is low, the influence of primary frequency response becomes more prominent and may invalidate this assumption. Furthermore, the choice of sliding window length (or cutoff frequency for the smoothing filter) will also affect the quality of the estimate, with higher levels of smoothing leading to larger estimation errors. It was also shown that inertia can be materially overestimated when wind farms provide virtual inertia emulation or fast frequency response [13].
Another factor that may confound system inertia estimates is the presence of load relief (or damping), which is the natural sensitivity of loads in a network to changes in system frequency. As frequency declines after a generation contingency, so does power consumption from frequencysensitive loads such as induction motors [14]. Load relief acts to correct the active power imbalance after a contingency and thus helps to arrest the decline in frequency. As a result, system inertia estimates based on the linearised swing equation after a disturbance may mistake the effects of load relief as additional inertia.
In the literature, the systemlevel load relief factor (LRF), which is also referred to as the load damping coefficient or loadfrequency characteristic, is typically estimated separately from system inertia. Earlier studies attempted to directly measure load relief by conducting live tests such as the intentional tripping of generators and transmission lines, e.g. in Great Britain [15], Norway [16] and Ireland [17]. A less invasive approach is to estimate the systemlevel LRF after a contingency event using measurements of total system load from the Energy Management System (EMS). However, EMS sampling resolution may not be high enough to accurately assess system load changes after a contingency [18]. To mitigate EMS resolution issues, highspeed fault recorder data can be used to estimate the system load change after a contingency [12]. Finally, estimating LRF has also been investigated using a bottomup approach, e.g. using highspeed fault recorder data at substation level [14] or at the level of individual consumer devices [19]. However, it is remains unclear how to aggregate the individual LRF estimates into a meaningful systemlevel LRF.
This paper takes a different approach to system inertia and load relief estimation. Rather than using the linearised swing equation, the system inertia and load relief factor are treated as unknown parameters in a loworder system frequency response (SFR) model and the model is then fitted to postdisturbance frequency and generator output measurements. This approach exploits the SFR model's ability to accurately predict the system frequency trajectory after a disturbance, and thus use more measurement data as inputs to the estimation model.
The main contribution of this paper is the introduction of a novel model fitting approach to inertia estimation that uses a system frequency response model to simultaneously estimate both system inertia and systemlevel load relief. The proposed method is shown to be credible when compared with other inertia estimation methods, while requiring less discretion in the choice of parameters, e.g. sliding window length or polynomial order.
The remainder of this paper is organised as follows: In Section II, the system inertia estimation method based on modelfitting is proposed, with the added benefit that the method concurrently estimates the systemlevel load relief factor. This is followed in Section III by several computer simulation case studies comparing the performance of the proposed approach with other methods. In Section IV, case studies are performed using data from a real power system to illustrate some of the advantages of the proposed method over other approaches. A discussion of the results in this paper is then presented in Section V, and finally concluding remarks and avenues for future work are described in Section VI.
2. Proposed Methodology
Rather than using the linearised swing equation in (1) to estimate system inertia, we propose to jointly estimate system inertia and load relief / damping by fitting a loworder SFR model to measured frequency data.
At a high level, the proposed modelfitting estimation method has two steps as follows:
 Compile generator active power measurement traces to form an aggregate system primary frequency response (PFR) trace and contingency trace
 Estimate system inertia and load relief factor by fitting an SFR model to the measured frequency trace
2.1. Step 1: Measured system PFR and contingency traces
The measured system PFR trace is formed by aggregating the active power measurement traces from individual generators and interruptible loads. In order for the measured system PFR to be accurate (i.e. representative of the actual system PFR), the following conditions should be met:
 Active power measurements are high resolution and timesynchronised, e.g. from fault recorders or PMUs with time synchronisation via GPS or IEEE Std 1588 Precision Time Protocol [20].
 There are measurements at each major generating facility and interruptible load in the system. Where this is not practical, there should be at least measurements at each of the main PFR providers.
Note that with this approach, the influence of any PFR not explicitly included in the measured system PFR trace will be considered as load relief. This could include the influence of behindthemeter embedded generation or small distributionconnected generation that may not be visible by fault recorders or PMUs.
Similarly, the contingency trace is formed by extracting the active power measurement trace of the contingency (e.g. power flow from a generator or radial network element). For single generator or infeed loss contingencies, the contingency trace is simply the active power measurements from the fault recorder or PMU monitoring the generator or infeed. For multiple generator contingencies or simultaneous infeed losses, the contingency trace must be assembled (or estimated) from multiple measurement sources.
2.2. Step 2: Estimation of system inertia and LRF via model fitting
The linear ordinary differential equation (ODE) for a generic loworder SFR model after a contingency can be formulated from the swing equation as follows:
(2)
where is the frequency deviation at time t (Hz), f_{n} is the nominal frequency (e.g. 50 Hz), KE is the postcontingent system inertia (in MW.s), P_{cont}(t) is the contingency at time t (MW), p(t) is the aggregate system PFR at time t (MW), D is the load relief factor (% MW/Hz) and P_{load} is the system load at the onset of the contingency (MW).
Equation (2) can be rewritten in discrete form with a fixed time step Δt as follows:
(3)
In (3), the measured system PFR trace Pk and contingency trace P_{cont,k} were compiled in Step 1 and are known values, as is the system load precontingency P_{load}. This leaves the system inertia KE and load relief factor D as the unknown parameters to be estimated.
There are many ways to solve this parameter estimation problem, for example using nonlinear least squares [21], NewtonRaphson algorithms [22] or with Kalman filters [23]. In this paper, a recursive nonlinear least squares approach similar to the method described in [24] is used to minimise an error function based on the Root Mean Squared Error (RMSE):
(4)
where f is the measured frequency, is the frequency calculated from the SFR model and N is the total number of samples.
3. Computer Simulations
Computer simulations were performed on the IEEE 9bus and New England IEEE 39bus systems to compare the performance of the proposed model fitting approach with two commonly used inertia estimation methods:
 Sliding window method [3]
 Inoue polynomial fit method [2]
The timedomain RMS simulations were conducted in DIgSILENT PowerFactory v2020 software and in each case, loads were modelled to be frequencydependent with a load relief factor of D=4%.
3.1. Case 1: IEEE 9Bus System
In Case 1, the IEEE 9bus system depicts a small islanded system with three generators and 315 MW of load. The default IEEE 9bus system was modified to include a standard turbinegovernor model (TGOV) for each generator. To simulate a frequency disturbance, generator G3 was tripped from 85 MW.
A summary of the best and worst inertia and load relief estimates for each of the different methods is shown in Table 1. It should be noted that only a single estimate is shown for the model fitting approach as there are no adjustable parameters (such as window length or polynomial order).
Method  KE (MW.s)  D (%)  Remarks

Actual  1,522  4.00 %

Sliding window (best)  1,524    60ms window
Sliding window (worst)  2,810    1,000ms window
Inoue (best)  1,547    20th order
Inoue (worst)  1,730    14th order
Model fitting  1,589  3.45 %

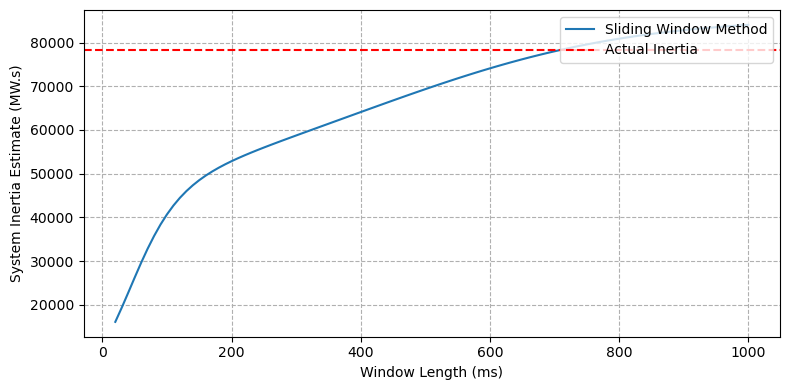

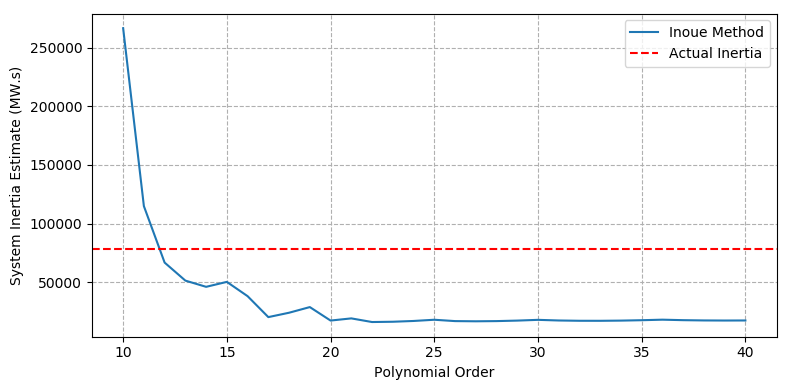

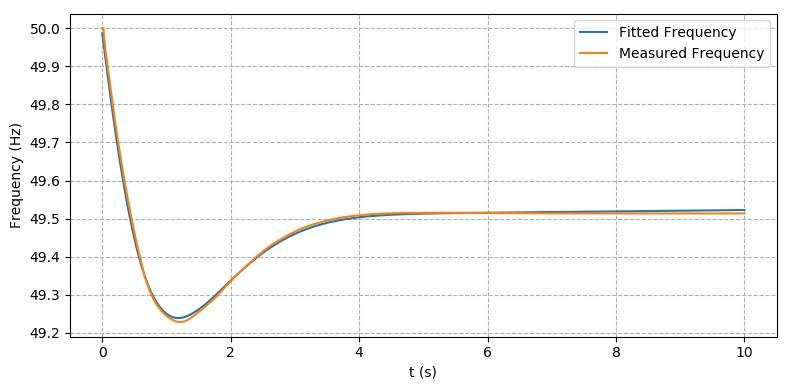

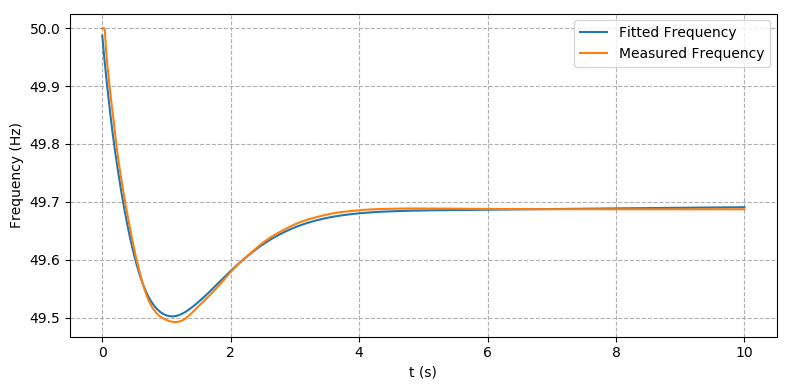

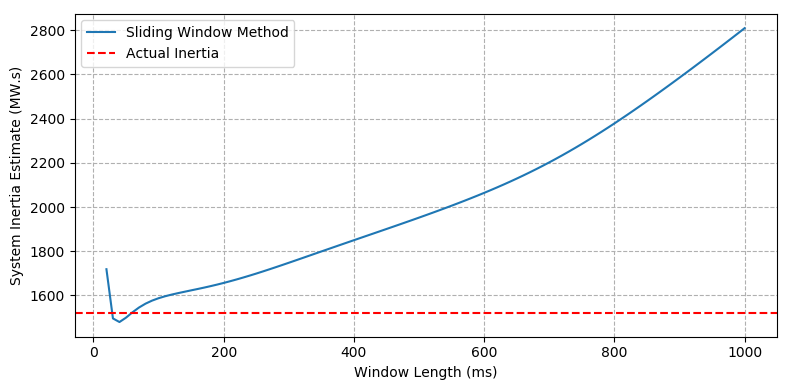

System inertia estimates using the sliding window and Inoue polynomial fit methods with varying window lengths and polynomial order are shown in Figure 2a and Figure 2b respectively. The figures indicate that the accuracy of the inertia estimate is sensitive to the choice of window length or polynomial order. Figure 2c shows the simulated (measured) frequency trace vs the fitted frequency trace after applying the model fitting method.
3.2. Case 2: New England IEEE 39Bus System
Relative to Case 1, the New England IEEE 39bus system depicts a larger interconnected power system comprising nine generators and 6,097 MW of load. To simulate a frequency disturbance, generator G10 was tripped from 200 MW.
Like in Case 1, a summary of the best and worst inertia and load relief estimates from each of the different methods is shown in Table 2. The inertia estimates with varying window length and polynomial order are shown in Figure 3a and Figure 3b respectively, and the measured vs fitted frequency trace after applying the model fitting method is shown in Figure 3c.
Method  KE (MW.s)  D (%)  Remarks

Actual  78,270  4.00 %

Sliding window (best)  78,344    690ms window
Sliding window (worst)  16,070    10ms window
Inoue (best)  66,443    12th order
Inoue (worst)  266,772    10th order
Model fitting  75,257  3.49 %

An interesting feature of the simulation results in Case 2 is the presence of oscillations in the frequency trace as generators in the system swing against each other. These oscillations are visible even after the averaging effects of using the centre of inertia frequency (see Figure 3c). The oscillations cause the sliding window and polynomial fit methods to overestimate the RoCoF at shorter window lengths (as observed in [3]) and high polynomial orders (i.e. because of overfitting).
3.3. Case 3: IEEE 9Bus System with Fast Frequency Response
In Case 3, the IEEE 9bus system in Case 1 is augmented with a 30 MW Battery Energy Storage System (BESS) providing FFR. This case is included to examine the effects of FFR on inertia estimates and validate the findings in [13], i.e. material errors in inertia estimates can arise when the sliding window method is applied to systems with FFR.
As in the previous cases, a summary of the best and worst inertia and load relief estimates from each of the different methods is shown in Table 3. The inertia estimates with varying window length and polynomial order are shown in Figure 4a and Figure 4b respectively, and the measured vs fitted frequency trace after applying the model fitting method is shown in Figure 4c. Note that in the model fitting method, the BESS response was included in the PFR trace. As a potential source of both synthetic inertia and PFR, it is important that BESS installations have highspeed measurement systems are in place for inclusion in the inertia estimates.
Method  KE (MW.s)  D (%)  Remarks

Actual  1,522  4.00 %

Sliding window (best)  1,785    30ms window
Sliding window (worst)  4,209    1,000ms window
Inoue (best)  1,522    20th order
Inoue (worst)  1,812    13th order
Model fitting  1,662  3.76 %

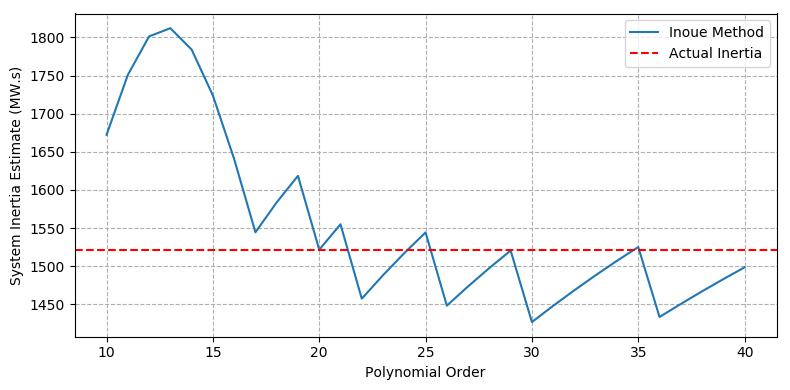

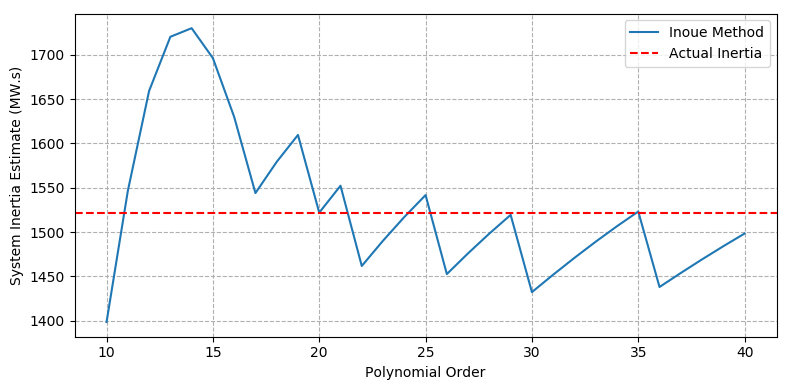

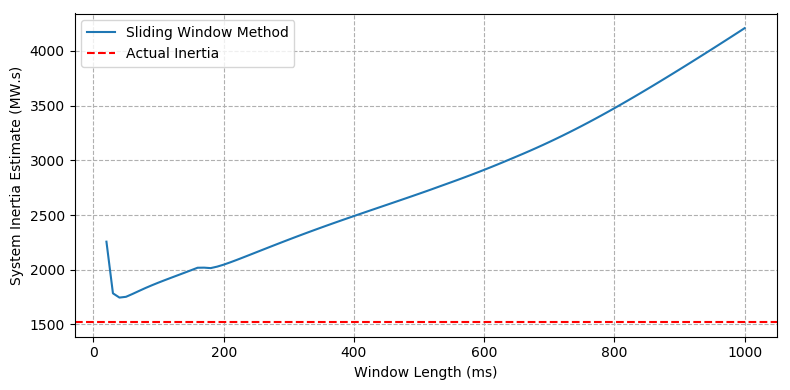

The results indicate a deterioration in estimation accuracy from the sliding window method from Case 1, particularly with increasing window length. The Inoue polynomial fit method performs better, with a narrower range of estimates, but the accuracy is sensitive to the choice of polynomial order and it may be difficult to ascertain a priori whether the order selected is the appropriate one.
4. Application to a Real Power System
The following case studies are based on actual generator contingency events from the South West Interconnected System (SWIS) in Australia. The SWIS is a mediumsized islanded power system serving approximately 1.2 million customers in the southwest region of Western Australia. The SWIS covers a vast geographic area of 261,000 square kilometres (larger than the land area of the United Kingdom), but with a historical record peak demand of just 4.3 GW.
Case  Description

Case 4  Generator primemover trip
Case 5  Network fault causing a generator trip
4.1. Case 4: Generator turbine trip

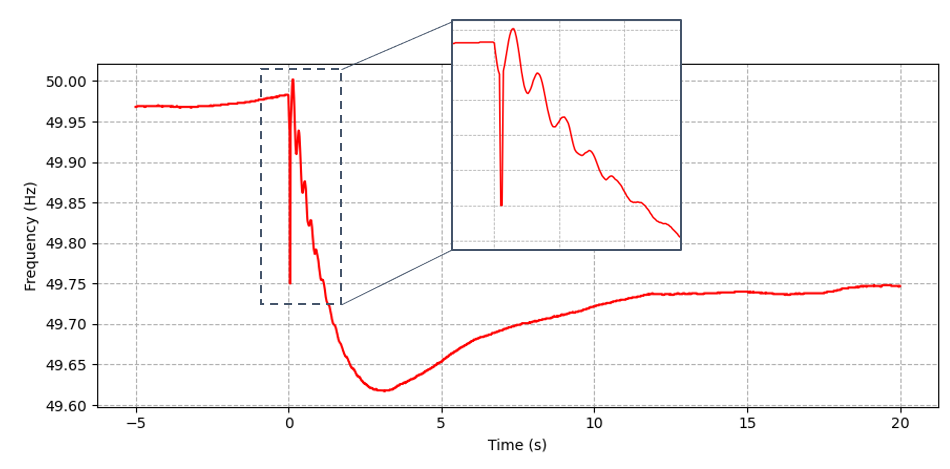

On 17 March 2020 at 18:06pm, an opencycle gas turbine generator tripped from 161 MW causing frequency to drop to 49.55 Hz (at the nadir). At the onset of the contingency, the system load was 2,441 MW and the total postcontingent generator inertia was 15,009 MW.s (calculated by summing the known generator inertia values for all online machines).
The inertia estimates with varying window length and polynomial order are shown in Figure 5a and Figure 5b respectively, and the measured vs fitted frequency trace after applying the model fitting method is shown in Figure 5c.
Unlike in the computer simulations, the actual system inertia is not known. The postcontingent generator inertia is known, but this does not include load inertia so is more representative of the floor for the system inertia estimate. The summary of the results in Table 5 show the range (minimum and maximum) of estimates from the sliding window and Inoue methods, as well as the single point estimate from the model fitting method.
Method  KE (MW.s)  D (%)  Remarks

Generator inertia  15,009

Sliding window (min)  20,735    170ms window
Sliding window (max)  26,833    20ms window
Inoue (min)  18,482    4th order
Inoue (max)  56,750    15th order
Model fitting  19,610  2.85 %

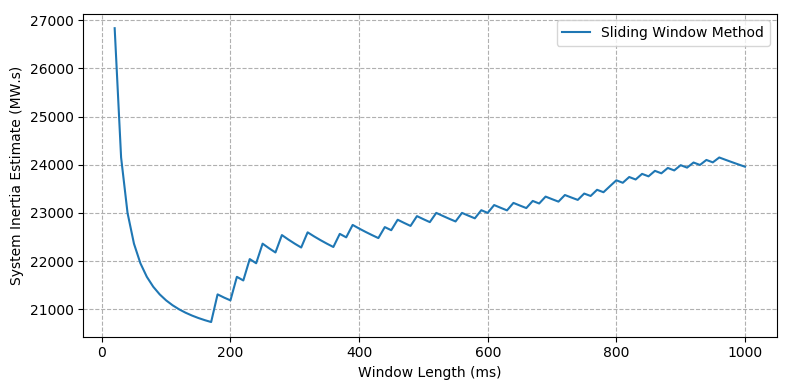

The sliding window method in Figure5a exhibits a similar shape to that in Cases 1 and 3, where beyond a threshold window length (in this case 170ms), the inertia estimate continues to rise steadily without settling. In Cases 1 and 3, the actual system inertia was close to the estimate at the threshold window length, which in this case would be 20,735 MW.s.

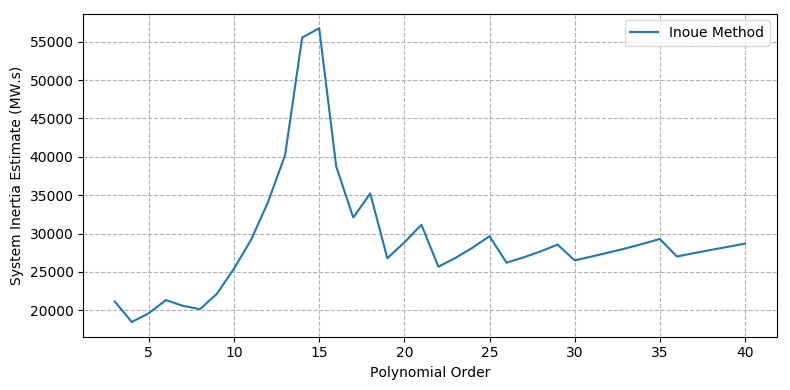

At high polynomial orders, the Inoue method in Figure 5b appears to settle at around 26,000 MW.s. However, such an estimate would suggest a load inertia of roughly 42\% of system inertia, which is inconsistent with previous inertia estimates in the SWIS, as well as estimates reported in the literature (such as [25] and [26]), where load inertia is typically estimated to be 10  25\% of system inertia.

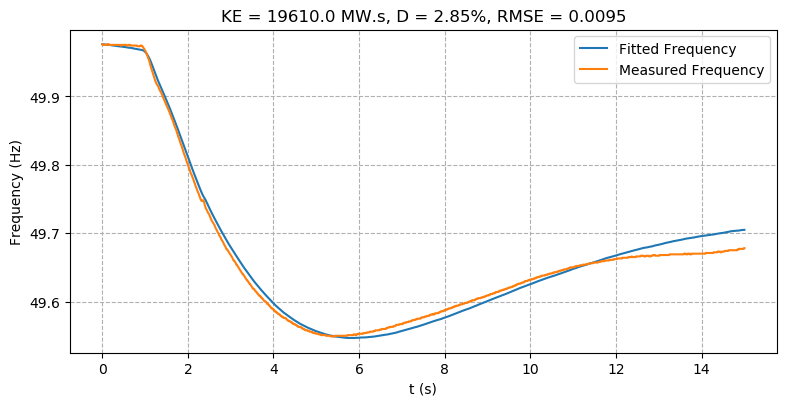

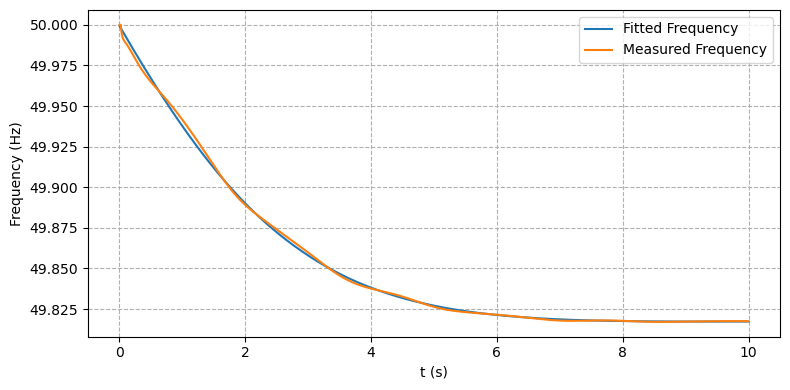

The model fitting results in Figure 4c show good alignment between the simulated and measured frequency traces (RMSE=0.0095) and the inertia estimate of 19,610 MW.s is on the lower end of the sliding window and Inoue estimate range. This suggests that the actual system inertia is likely in the 19,000  21,000 MW.s range.
4.2. Case 5: Network fault causing a generator trip
On 22 October 2020 at 16:25pm, a 330 kV network fault caused the trip of a combinedcycle gas power plant, resulting in an instantaneous loss of 231 MW and frequency to fall to 49.46 Hz (at the nadir). At the onset of the contingency, the system load was 1,991 MW and the total postcontingent generator inertia was 11,612 MW.s. The summary of the results in Table 6 show the range (minimum and maximum) of estimates from the sliding window and Inoue methods, as well as the single point estimate from the model fitting method.
Method  KE (MW.s)  D (%)  Remarks

Generator inertia  11,612

Sliding window (min)  3,609    40ms window
Sliding window (max)  18,392    1,000ms window
Inoue (min)  6,567    30th order
Inoue (max)  22,309    3rd order
Model fitting  15,534  2.01 %

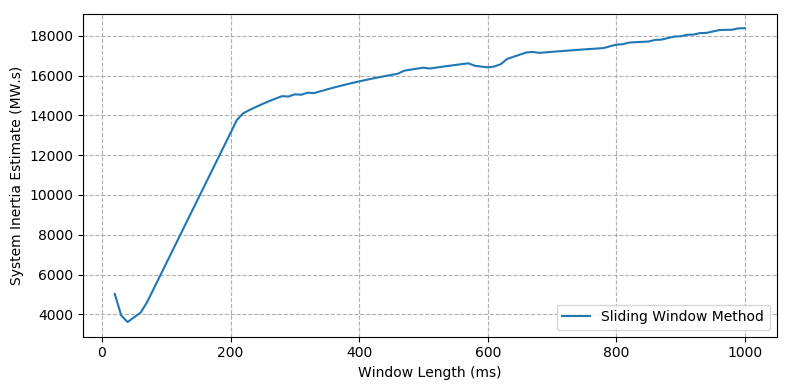

The network fault causes a transient component in the frequency trace, which results in overestimates of system inertia with the sliding window method when the window length is small, as shown Figure 6a for window lengths <200ms. This is broadly similar to how the sliding window method performs with the oscillatory frequency trace observed in Case 2. In that previous case, the sliding window method is more accurate beyond a "knee" point window length, where the effects of the oscillations are filtered out. In this case, the knee point occurs at a window length of 210ms and a system inertia estimate of 14,000 MW.s.

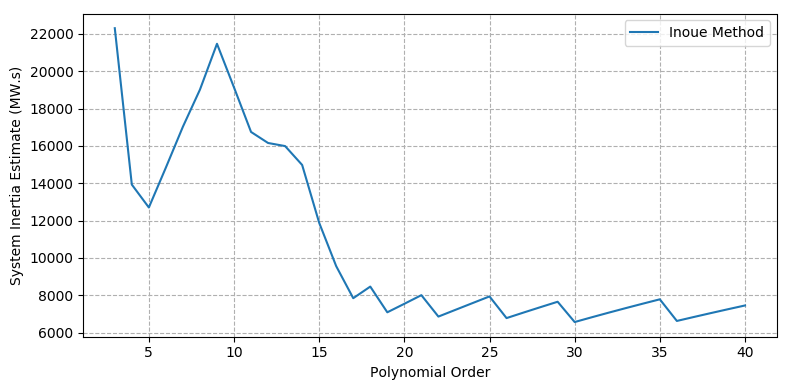

Similarly, the Inoue method will tend to overfit the frequency trace (and particularly the transient component) at high polynomial order. This can be seen in Figure 6b, where the system inertia estimate is below the known generator inertia at polynomial orders >15. The Inoue method does not credibly provide any useful information regarding the correct range for system inertia.

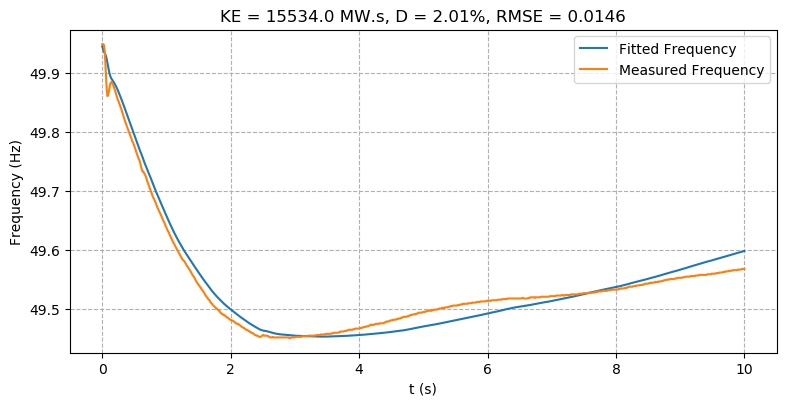

The model fitting results in Figure 6c show reasonably good alignment between the simulated and measured frequency traces (RMSE=0.0146) and yields an inertia estimate of 15,534 MW.s. This estimate is broadly consistent with the sliding window method using a window length near the knee point.
5. Discussion
The results from the case studies indicate that system inertia estimation using the proposed modelfitting approach is a credible alternative to conventional approaches based on the linearised swing equation. Good alignment between the measured frequency and the simulated frequency implied by the fitted SFR model suggests that the parameters in the SFR model are able to endogenously explain the frequency trajectory. The proposed approach also has the practical advantage of providing a single point estimate without needing to select parameters such as the sliding window length or polynomial order.
Interestingly, the case studies highlight that system inertia estimates using the sliding window and Inoue polynomial fit methods are very sensitive to the choice of these parameters. The computer simulations show that depending on the scenario and choice of window length or polynomial order, system inertia estimates can be either very accurate or have large errors, e.g. ±20% to 50%. While there are broad patterns that are observed in the case studies, for example, systematic underestimates when using the Inoue method with high polynomial orders in frequency traces containing transient or oscillatory components, there are no specific rules or heuristics to guide parameter selection. As the case studies in Section 4 show, it is difficult to select the most appropriate parameter in practice, particularly as measurement noise present in frequency traces can also affect the inertia estimate.
The proposed modelfitting approach does not suffer from these issues and in the computer simulations, the method yields system inertia estimates within 3% to 9% of the true value. However, it should be stressed that the range of errors from the simulations cannot be readily translated to the real power system, where the accuracy cannot be objectively quantified. One of the main limitations of the proposed approach is the assumption that voltages are wellregulated during the contingency (which is a core assumption for the validity of a system frequency response model). Generation contingencies arising from network faults may have accompanying voltage disturbances that can propagate widely through the system. This can have a material impact on the response of loads that are sensitive to voltages. In the proposed approach, the aggregate effect of these voltage sensitivities would be captured as frequencyrelated load relief, which would be inaccurate. Voltage disturbances also have other impacts on the power system that can influence the validity of the estimates from the proposed approach, for example:
 Triggering of fault ride through (FRT) responses from wind and solar plants and the impact of a temporary withdrawal of active power on the inertia estimates. Ideally, high speed measurement systems are in place to capture these responses, which can then be included in the aggregate PFR trace.
 Widespread sympathetic tripping of distributed energy resources (DER) due to voltage disturbances can lead to a material increase in aggregate load. However, DER tripping tends to occur quite quickly after a fault and could potentially be included as a correction to the generation contingency trace (e.g. based on an estimate of aggregate DER tripping volume).
It is recommended that practitioners using the proposed approach have a general sense of the range of load inertia and load relief estimates that are reasonable to expect in their power system in order to assess the credibility of the estimates (and identify potential outliers).
6. Conclusion
This paper proposed a novel approach for simultaneously estimating system inertia and the load relief factor. The proposed approach is based on fitting an SFR model to measured contingency / disturbance data. Case studies demonstrated the applicability and validity of applying the new approach on computer simulations with the IEEE 9bus and 39bus systems, and on real events in the SWIS in Western Australia. Furthermore, the proposed method is not sensitive to the selection of algorithm parameters such as the sliding window length or polynomial order. It should be noted that while the proposed approach is shown to work well for the IEEE test systems and the SWIS, it may not be suitable for all power systems. For example, the proposed approach relies on a complete set of highspeed timesynchronised measurements for all PFR providers. This may not be feasible for large, interconnected systems with many PFR providers and limited visibility.
An avenue for future work is to investigate heuristics for the appropriate selection of sliding window length and polynomial order, potentially using the proposed modelfitting approach to calibrate the range of estimates. Further work could also be done to explore the impacts of missing data (e.g. highspeed active power traces), synthetic inertia and high levels of distributed generation. Finally, the effects of contingencies with accompanying voltage disturbances on load behaviour can also be investigated, particularly in finding an acceptable level of voltage changes that would be considered inconsequential for using the proposed approach.
Appendix. Removal of inertial components from generator output traces
Highspeed active power measurements of synchronous generators contain both the inertial response and PFR from the generators. Since inertia is endogenous to models based on the swing equation, the system PFR trace can only be used if the inertial components are removed first (otherwise the effects of inertia are double counted).

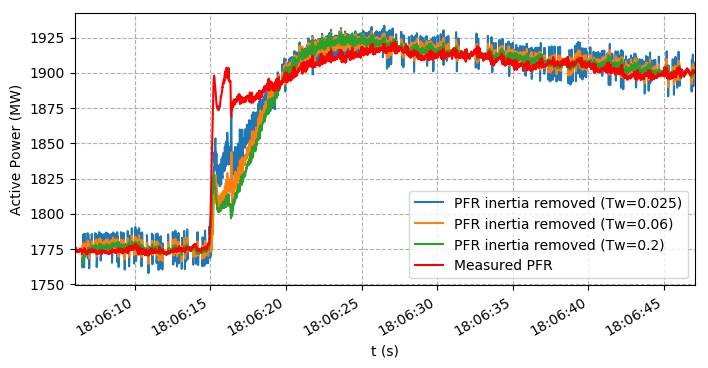

A simple washout filter is proposed to isolate inertial components from the PFR using the measured frequency as an input and the known inertia constants of the generators contributing to the system PFR as a parameter (see Figure 7). The inertial components are then removed from the measured system PFR trace.
The selection of the washout time constant T_{w} is a tradeoff between accuracy and noise. Ideally, a very small time constant is applied so that the washout filter more closely approximates a true differentiator. However, small time constants are more sensitive to noise in the frequency measurement (refer to T_{w}=25ms in Figure 8). On the other hand, a large time constant will reduce the accuracy of the estimate despite appearing less noisy (refer to T_{w}=200ms in Figure 8). It was empirically found that a washout time constant of 60 ms to 80 ms yielded an acceptable balance between accuracy and noise (refer to T_{w}=60ms in Figure 8).
